Wheel Factory hand built wheels

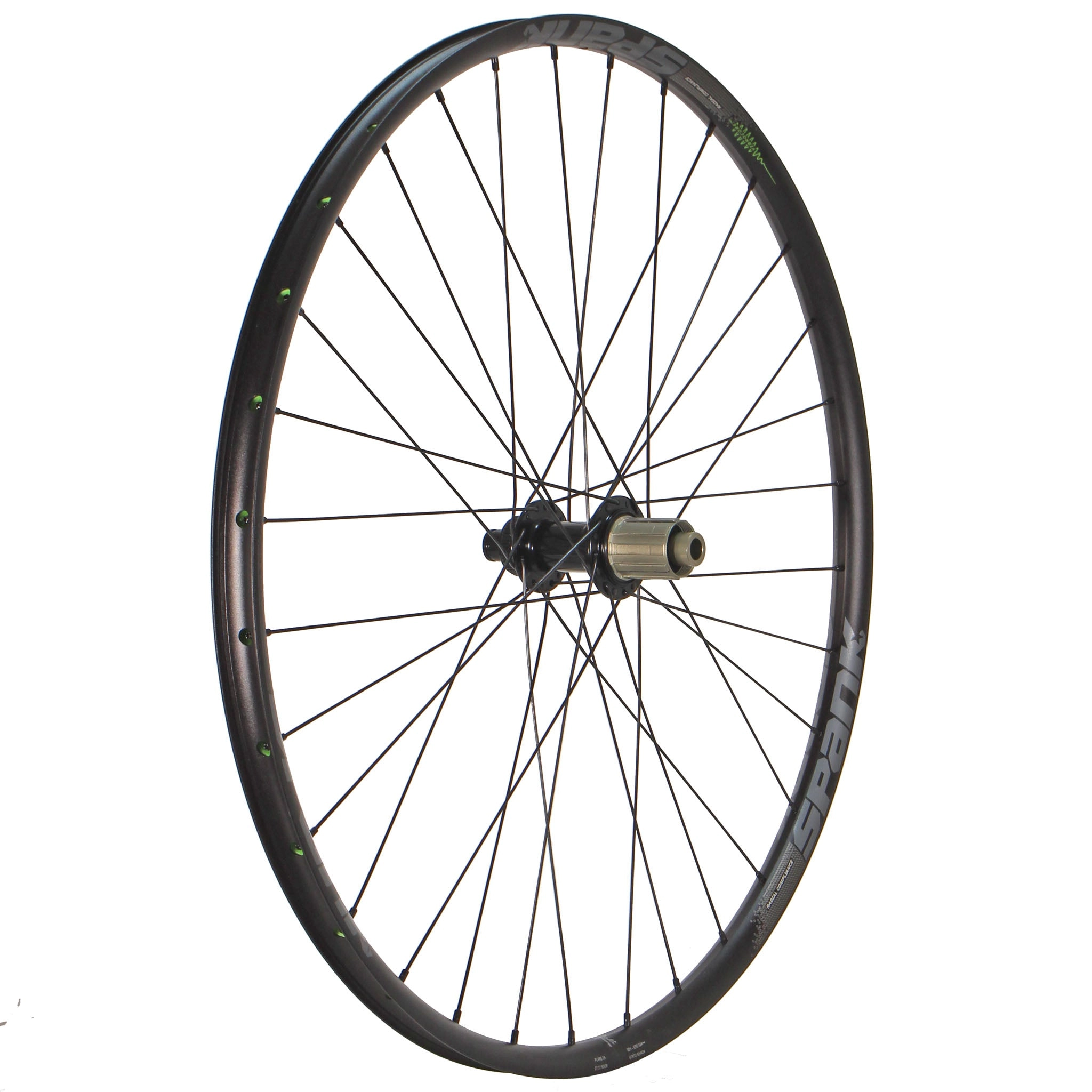

Spank Flare 24 rims bring Spanks Vibrocore and compliant ride technology to gravel rides
24mm inner width, provides exceptional versatility in tire pairing, from wide road slicks to gravel knobbies
16.5 mm profile height enhances Radial Compliance, improving traction, while reducing negative feedback to the rider
Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
Dynamal alloy is shot peen finish, heightening durability and fatigue life
Bitex BX106 Hubs offer premium performance and finish at an attainable price point
44 POE 6 pawl driver mechanism
XDR (BI4503) and Campy 11sp (BI4513) FHB available
Q/R axles and adapters available (BI4711-BI4713)
Black double butted spokes and brass nipples
Built with DT Swiss Competition double butted spokes (2.0/1.8/2.0) and alloy DT Swiss Squorx nipples
Hand laced and trued in the USA| size | 700c |
| front/rear | rear (HG 11sp road) |
| rim | Spank Flare 24 |
| hub | Bitex BX106F CL |
| axle/spacing (mm) | 12x142 TA |
| hole | 32h |
| spoke | DB |
| nipple | alloy |
| color | black |
| weight | 900g |
