The "All-Country" Spur allows you to effortlessly explore, seek, and pursue the mountain in ways you never imagined.
Now with UDH
Effortlessly explore, seek, and pursue the mountain in ways you never imagined.
The Spur provides a sense of connection to the bike as if it were an extension to your body. Fast and efficient with an anti-gravity feel and laser-pointer precision that begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where you're usually accustomed to pedaling. Don't judge a book by its cover though, with all these lightweight and uphill oriented character traits the Spur requires no adjustment to descend like you're used to, you might actually go faster.
Specifications:

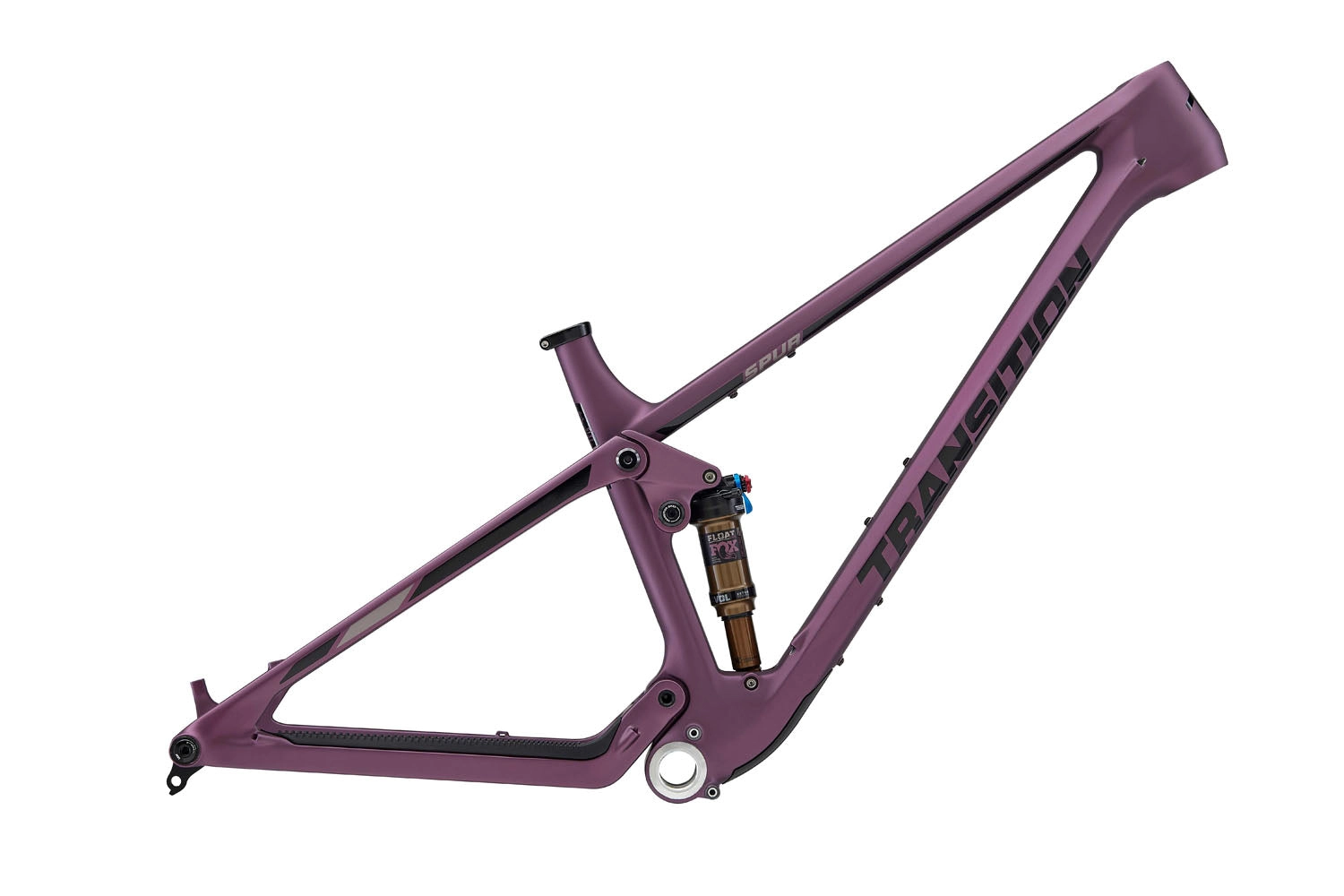

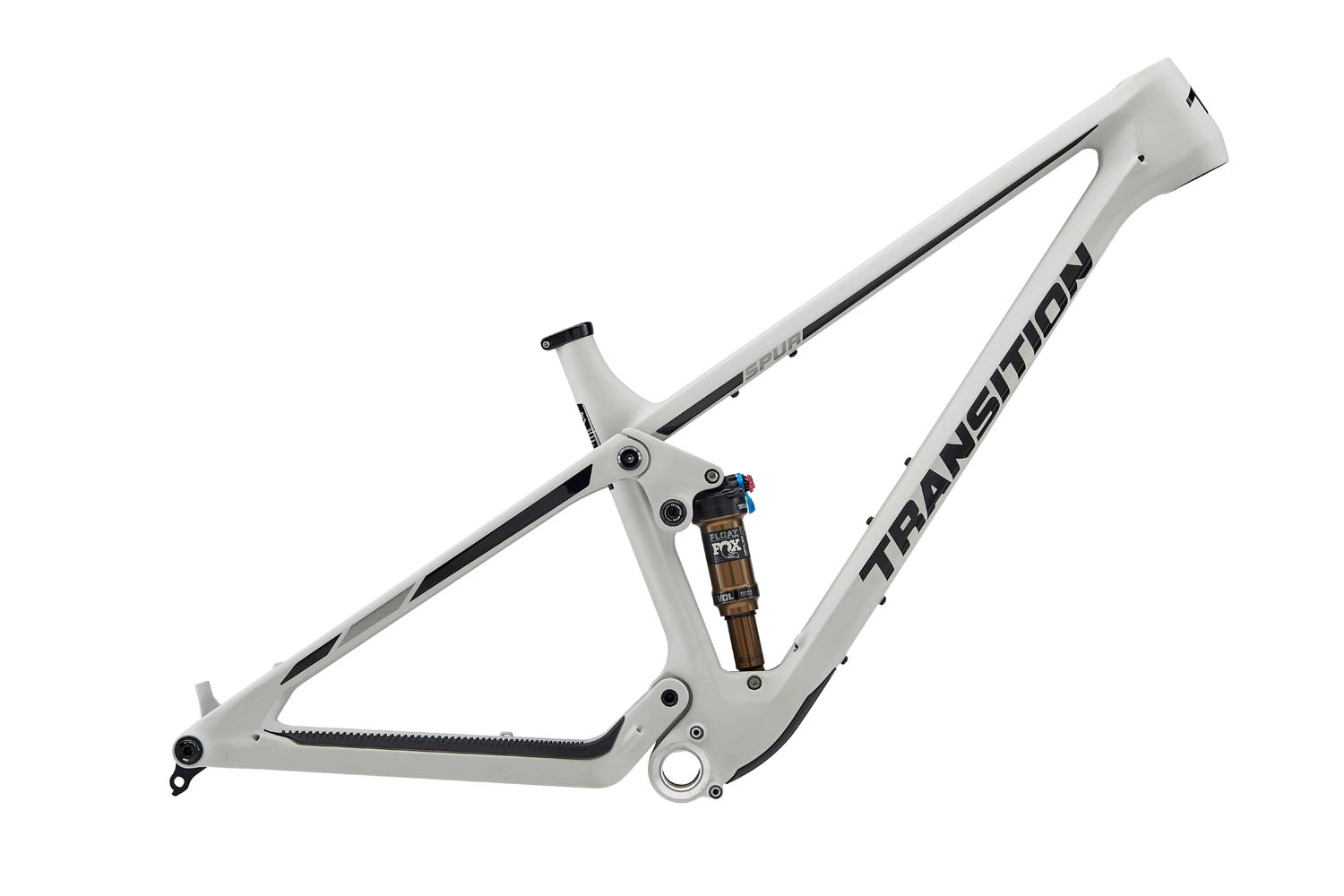

Frame: Spur Carbon 120mm
Rear Shock: Float Factory DPS
Weight: 5.4 lbs/2.45 kg (Size MD w/shock)
Derailleur Hanger: UDH
| REAR TRAVEL: | 120mm (Compatible with 100mm) | ||
| FRONT TRAVEL: | 120mm | ||
| WHEEL SIZE: | 29" | ||
| SIZES: | SM, MD, LG, XL | ||
| COLORS: | Hazy Grey, Blackberry, Aqua, Raw | ||
| FRAME BEARINGS: | 2x 6903, 4x 6901 | ||
| FORK AXLE TO CROWN: | 533mm (Includes headset) | ||
| FORK OFFSET: | 44mm | ||
| REAR SHOCK SIZE: | 190mm x 45mm (Compatible with 190mm x 37.5mm) | ||
| SHOCK HARDWARE: | 30mm x 8mm Top / 25mm x 8mm Bottom | ||
| HEADSET (TOP): | 44mm Zero Stack | ||
| HEADSET (BOTTOM): | 56mm Zero Stack | ||
| BB SHELL: | 73mm BSA Threaded | ||
| CHAINLINE: | 52-55mm | ||
| REAR BRAKE MOUNT: | 160mm Post Mount, Max Rotor Size 200mm | ||
| REAR AXLE: | Syntace X12 148 (Boost), 1.0mm Thread Pitch (Aqua, Raw) Transition Axle For UDH, 12mm x 148mm Spacing (Hazy Grey, Blackberry) | ||
| ISCG TABS: | ISCG05 (Top/Front 2 mounts only) | ||
| SEATPOST DIAMETER: | 31.6mm | ||
| SEAT CLAMP: | 37.0mm | ||
| MAX SEATPOST INSERTION: | Small 250mm | Medium 280mm | Large 330mm | XL 330mm | ||
| MAX CHAINRING SIZE: | 36T Standard Single Ring | ||
| MAX TIRE SIZE: | 29 x 2.4 | ||
| REAR SHOCK SAG: | 120mm (45mm) = 12-15mm (27-33%) 100mm (37.5mm) = 10-12mm (27-33%) | ||
